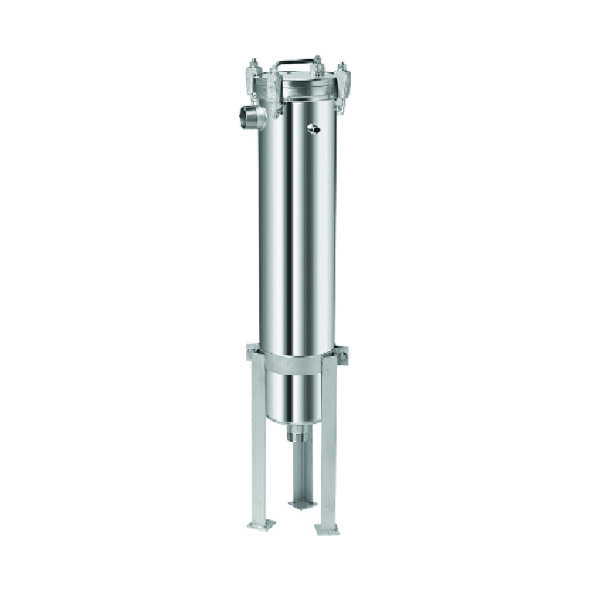

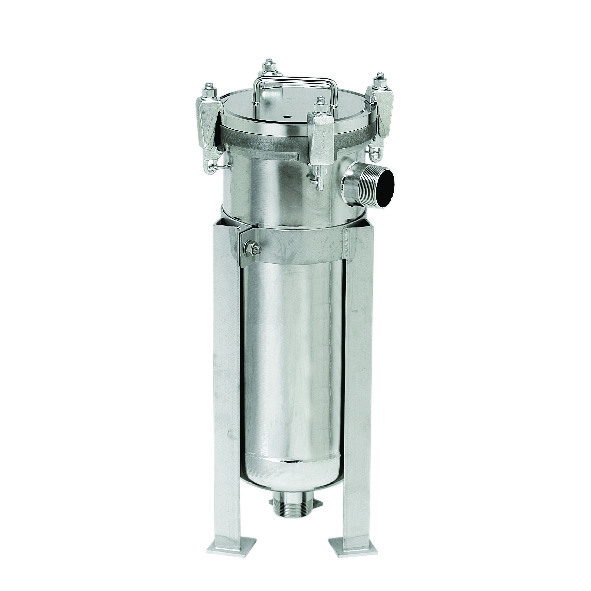

The 85 Series bag housings are designed for use with the industry standard DuoLine G Series 7” ring style bags widely used in today’s process industry. They are designed for either single or double length bags and flow rates up to 25 m3/hr. The top opening style is equipped with a Cast Vee clamp as standard with the option of Rathmann style hinged and bolted closures for pressures up to 10 bar g.

The housing will accept the full range of Amazon and industry standard bags ranging from 1 to 1000µm with nominal lengths of 16” (P1) and 32” (P2) and Amazon’s own 48” triple length bag.

The 85 Series is infinitely flexible with adjustable legs and bottom outlet connection, making it ideal for batch applications, where free draining and frequent process changes take place.
Widely used in the chemical process world, the 85 Series housing, when equipped with the optional Rathmann style hinged and bolted closure, has proved to be the most popular model produced today. Distinguished by its economy, high build quality and wide ranging options list, this housing can be used in almost all areas of the liquids processing industry.

Product Features

  • Positive bag seating mechanism to minimise risk of seal bypass
  • Robust bag support basket assembly fabricated from perforated sheet rather than wire mesh for extra strength
  • Internally and externally electropolished as standard
  • Wide range of options available for connection sizes and types and materials of construction
  • Rated at 10 bar g liquid, 4.5 bar g gas and 150°C
  • Bolted closure version rated at full vacuum
  • Vee clamp or hinged and bolted style closures
  • Conventional dished end to aid cleandown
  • Each housing hydrostatically pressure tested
  • PED and ATEX Compliant

Features and Benefits

  • Integral vent to aid efficient filter changeout
  • Each housing is etched with a unique serial number for full traceability
  • Full housing customisation service available
  • Internally and externally electropolished as standard
