Direct to Chip Cooling Filtration Solutions

Ensuring Purity, Safety and Efficiency at Every Stage

Industry
Water
Data Centre

Overview

As artificial intelligence, machine learning and high-performance computing continue to increase server heat loads, data centre cooling technologies are evolving rapidly. With rack densities now exceeding 200 kW, traditional air-cooled systems (CRAC) must be supplemented by hybrid cooling or replaced by direct-to-chip (DTC) technologies.

With cooling fluids flowing closer than ever to mission-critical IT equipment, fluid cleanliness has become a key factor in performance, reliability and uptime.

Amazon Filters provides filtration solutions across the entire cooling infrastructure, from the Facilities Water System (FWS) through to the Technology Cooling System (TCS), helping protect equipment, maintain cooling efficiency and support long-term system reliability.

A Complete Approach to Data Centre Cooling Filtration

From CDU to Chip

As cooling fluids move closer to processors and GPUs, filtration requirements become increasingly demanding.

Direct-to-chip cooling systems use precision-engineered microchannel cold plates capable of removing extremely high heat loads.Even small amounts of particulate contamination can impact cooling performance and long-term reliability.

Particulate contamination, corrosion products, construction debris and scale can circulate throughout cooling infrastructure, negatively affecting heat transfer efficiency and damaging sensitive equipment.



Without effective filtration,
system operators may experience:

  • Reduced cooling efficiency

  • Fouling of heat exchangers and Increased pump wear

  • Blocked microchannel cold plates

  • Elevated maintenance costs

  • Reduced equipment life with increased risk of unplanned downtime

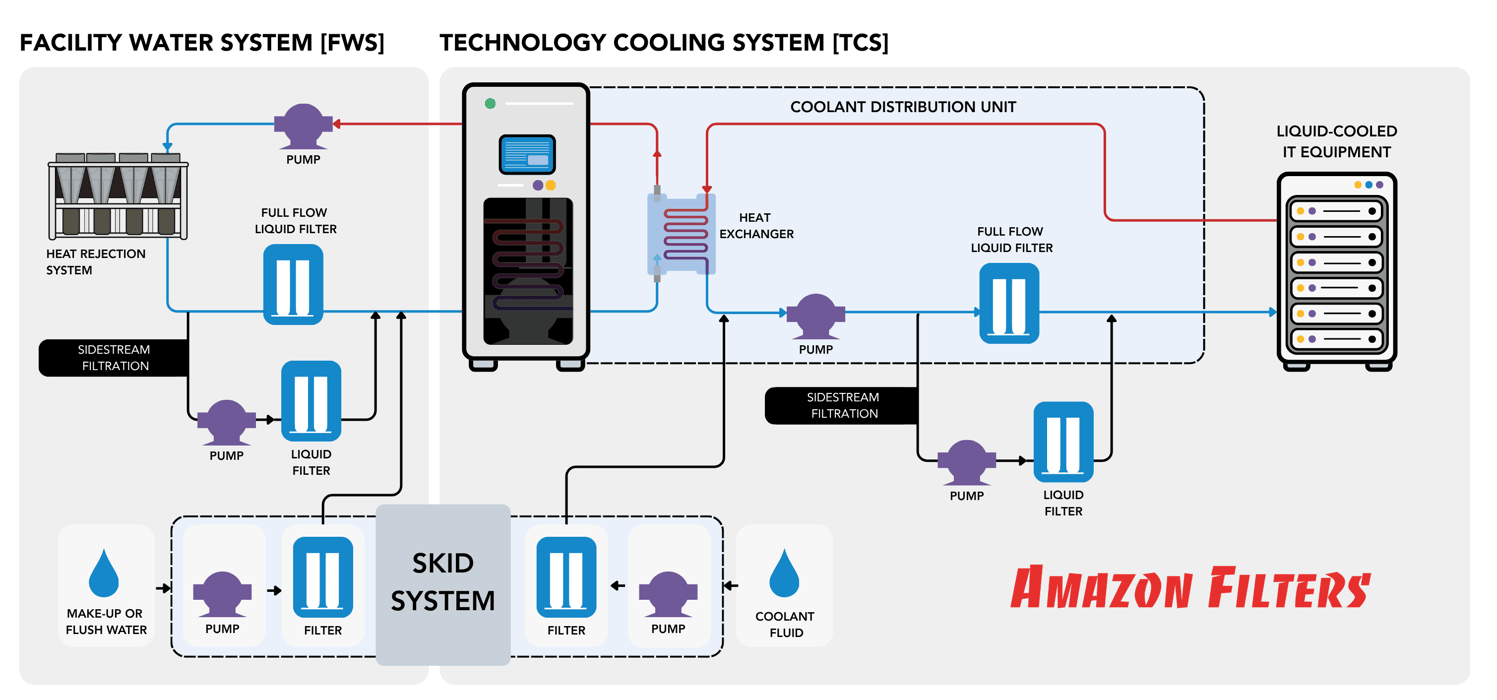

Data Centres (5)-1



Commissioning &
Flushing

Eliminating contamination during commissioning is essential to ensuring efficient operation throughout the system's service life.

Skid systems are available with pump, filter and controller to ensure fabrication debris is removed during flushing and system fill.

Facilities Water System
(FWS)

The primary cooling loop requires protection against particulate and microbial contamination to maintain heat transfer efficiency and system
reliability.

Coarse filtration using bags can be complemented by sidestream (15-20% of main flow) filtration. Our KilBac range provides excellent particle retention while preventing biofilm build up on the filters themselves. This has the benefit of extending filter life and lowering operational costs.

Cooling Distribution Unit
(CDU)

Adequate filtration upstream of, or within, the CDU can help protect internal heat exchangers from particulate contamination and fouling.

The filtration arrangement should be coordinated with the CDU manufacturer's requirements, taking into account the required filtration rating, flow capacity, allowable pressure drop, protection of internal components and limited space to prevent fouling of the internal heat exchangers.

Technology Cooling System (TCS)

Eliminating contamination during commissioning is essential to ensuring efficient operation throughout the system's
service life.

Skid systems are available with pump, filter and controller to ensure fabrication debris is removed during flushing and system fill.

Why Amazon Filters?

With proven industrial filtration expertise, Amazon Filters provides reliable solutions for every stage of the data centre cooling circuit.

From high-flow filtration within the facility loop to precision filtration down to 0.2 micron closer to the chip, our solutions help protect critical cooling infrastructure. With custom-engineered solutions and global technical support, we can tailor filtration to meet the specific requirements of your cooling system.

Supported Applications:

  • AI Data Centres
  • Hyperscale Facilities
  • High-Performance Computing
  • Colocation Providers
  • Enterprise Data Centres
  • Edge Computing Facilities
filter-cartridge-manufacture

Our Filtration Solutions

SupaPleat II SupaPleat II

Absolute pleating combines high efficiency with very low pressure loss. A Cryptosporidium grade extends it to food and beverage lines.

View product specs 61 Series multi cartridge housings from Amazon Filters 61 Series

Free-standing Vee clamp housings in stack counts from 3 to 22, with an integral vent and separate clean and dirty drains. Floor mounting keeps installation simple and capital outlay low.

View product specs SupaGard KilBac featured image SupaGard KilBac

Nominal-rated depth filtration carrying KilBac antimicrobial and anti-algal additives, made for single-pass and recirculating water systems. By stopping biofilm before it takes hold, it keeps cartridges running longer and trims operating costs.

View product specs SupaGard featured image SupaGard

The latest nominal-rated spun bonded design, and a like-for-like replacement for Millipore Polygard-CR and Polygard-CN. A genuine graded density lifts dirt capacity and keeps clean pressure drop low, while a built-in core curbs shedding.

View product specs supapleathfc SupaPleat HFC

High surface area and exceptional flow suit fine polishing on large systems. Nylon end caps on a stainless steel build lift the maximum operating limit from 80 °C to 100 °C.

View product specs SupaPleat FFC SupaPleat FFC

Large-diameter cartridges up to 60″ filter high volumes with quick change-outs. With a 153 mm diameter, they fit standard high-flow housings seamlessly.

View product specs 61 Series multi cartridge housings from Amazon Filters 62 Series

Leg mounted housings in stacks from 3 to 40, with a dished bottom end that drains the clean chamber. The 3, 5, and 7 round models take adjustable strap legs.

View product specs 84 series bag filter housings from Amazon Filters 84 Series

Free-standing bag housing with an inverted dished end and side connections, compatible with up to triple length bags. Compact footprint with low product hold-up between changes.

View product specs
See more products

Can't find what you are looking for?
We develop customised filtration solutions based on the needs of your site.

Learn about our custom housings

Certification & Approvals

All our products are manufactured in accordance with Quality Standard ISO 9001, Environment Standard ISO 14001 and Health & Safety Standard ISO 45001.

We are committed to manufacturing quality filtration solutions and adhere to the requirements of:

WRAS PED 2 PESR CPD

Protect Your System

Our filtration solutions can be configured to suit the specific flow rates, filtration requirements and system designs of your liquid cooling application.

Get a quote
