Depth Filters

SupaSpun KilBac | Depth Filters | Amazon Filters

SupaSpun KilBac featured image

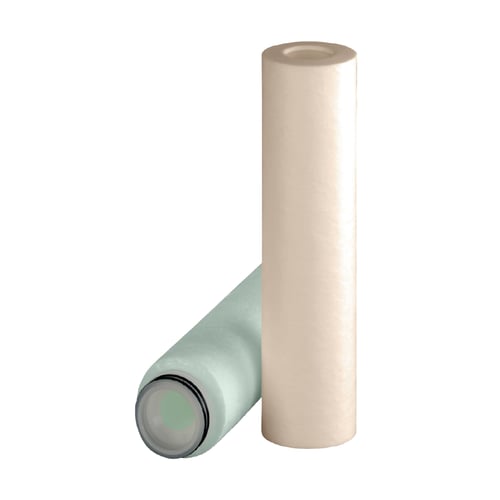

SupaSpun KilBac

Anti-microbial Depth Cartridge

In many water-based processes there can be a persistent problem with microbial contamination and the subsequent biofouling of the filtration system. This could be on either depth or membrane based filters.

SupaSpun KilBac® is a range of absolute rated melt blown depth filters with the addition of KilBac® anti-microbial and anti-algal technology to prevent biofouling on the filtration media.

KilBac

The Technology

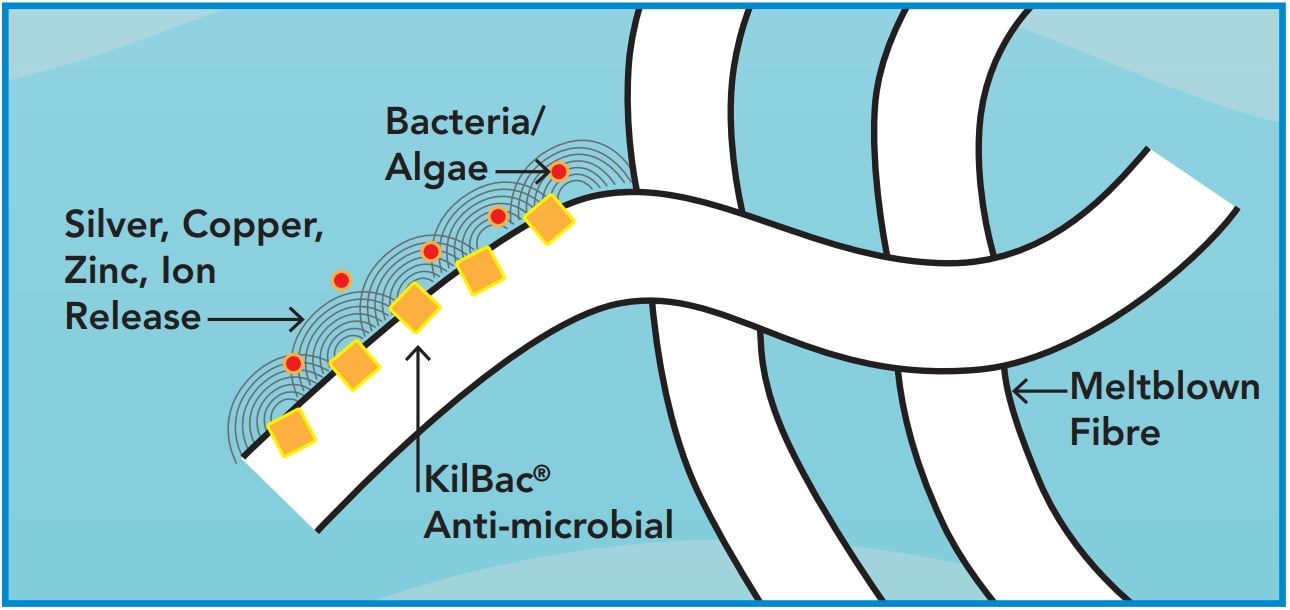

Rather than being based on nano-sized particles whose size and safety has been questioned in the past, our technology utilises micron-sized zeolite structures which are used as a carrier for the anti-microbial agent. By optimising the fibre diameter to the active particle size we maximise the surface area and hence the efficacy of the anti-microbial to the fluid stream being filtered.

Two KilBac® grades are available

  • Silver (Ag) / Zinc (Zn) for bacteria control
  • Silver (Ag) / Copper (Cu) for algae control

Supagard

KilBac® fibres are blown continuously on to a central support core, with fibre diameters controlled to produce different pore sizes throughout the extrusion process. All the layers are inter-linked to offer maximum support while ensuring that the high void volume is maintained, but with increasing fibre density towards the cartridge central core; therefore resulting in true graded density depth filtration.

Application notes

Features and Benefits

  • Absolute removal ratings for consistent and reliable performance
  • Graded density structure for maximum dirt holding capacity
  • Anti-microbial and anti-algal technology
  • Eliminates biofouling on filters in addition to controlling overall bioburden in water-based recirculation processes
  • Prevents biofilm build-up on single pass systems, extending filter life and reducing overall operating costs
  • Absolute ratings of 1 to 20µm (Beta Ratio 5000)
  • Thermal bonding process minimises media migration and ensures minimal extractables
  • Identification data embossed on every cartridge
  • Advantage grade featuring moulded end caps and rigid outer support cage
