Compact VCBA

Download Datasheet

Compact VCBA

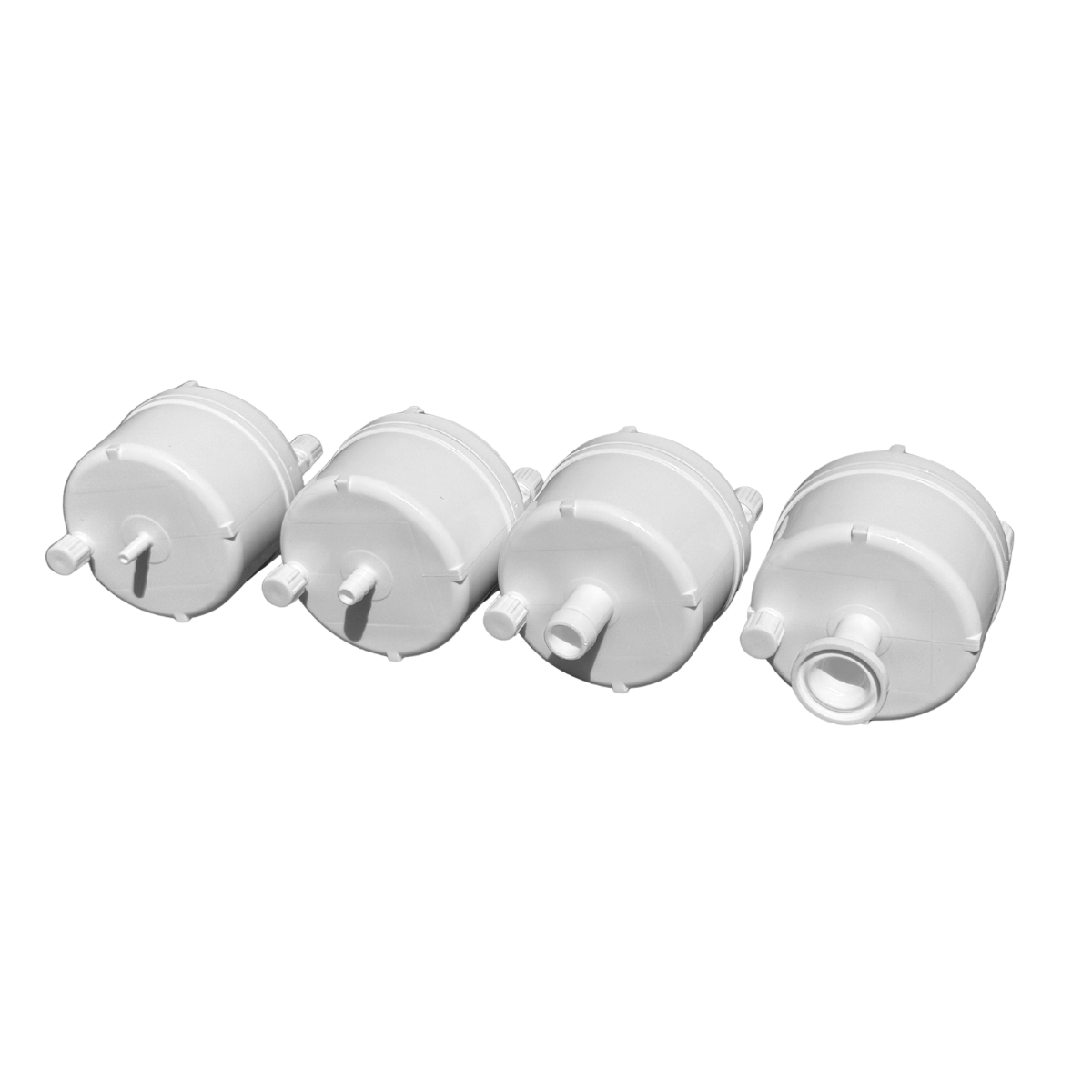

SupaPore VCBA Compact dual layer PES membrane filter capsules are disposable filtration units designed for small-scale liquid processing applications. Ready for use straight from the box, they eliminate the need for separate filter housings, enabling quick filter changeovers while helping to reduce downtime. The enclosed capsule design also minimises post-use cleaning and operator exposure to process fluids.

SupaPore VCBA Compact Capsule:

Ready-to-use disposable capsule design
Eliminates the need for separate filter housings
Simple filter change-out with minimal downtime
Enclosed design helps minimise post-use cleaning
Available with pleated PES membrane and a choice of inlet/outlet connections

Enquiry form

SupaPore VCBA Compact microfiltration membrane capsules are fully disposable filter units for small scale liquid processing applications. They are ready-to-use, avoiding the need to purchase or maintain filter housings and are easy to change-out with minimum downtime. The filtration unit is permanently enclosed inside the capsule shell to minimise post-use cleaning and operator exposure to process fluids.

SupaPore VCBA Compact capsules are available with pleated PES (polyethersulphone) and offered with a range of inlet/outlet connections to suit most process systems.

Fully disposable unit avoids the need to purchase a filter housing
Ready to use for easy filter change-out and minimum downtime
Enclosed filter unit minimises operator exposure and post-use cleaning
Wide range of inlet and outlet connections available so suitable for most process systems
All capsules fitted with 1/4” female luer loks and caps to allow efficient venting
All polymer construction
Full product validation guide available
Capsules can be autoclaved multiple times to extend lifetime and reduce consumable spend
PES membrane for high-flow, reliable filtration performance

Development and pilot plant applications
Equipment requiring filtration of air and gas
Hospital critical water applications e.g. endoscope washing machines, dialysis equipment
Manufacturers of small or medium size batches of products where batch to batch cleaning is an issue
Multi-purpose plants where flexibility is needed

Dimensions

Outside Diameter: 66mm

Sterilisation and Sanitisation

Autoclave: 121ºC for 25 Cycles of 30 mins each

Hot Water: Up to 90°C for 30 mins

Chemical Sanitisation: Using standard concentrations of hydrogen peroxide, peracetic acid, sodium hypochlorite & other selected chemicals.

Standard Materials of Construction

Membrane: Polyethersulphone

Membrane Support: Polypropylene

Assembly: Polypropylene

Maximum Operating Conditions

Maximum Temperature: 43ºC @ 2 bar

Maximum Pressure

5.5 bar @ 20ºC (Liquid)

4.1 bar @ 20ºC (Gas)

Maximum Differential Pressure

3.4 bar @ 20ºC (Forward flow)

2.7 bar @ 20ºC (Reverse flow)

Recommended change-out differential pressure: 2.5 Bar

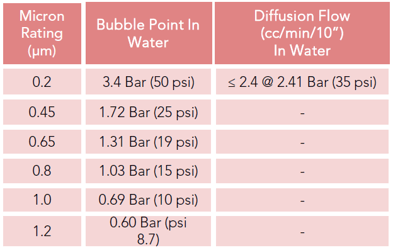

SupaPore VCBA (Bubble Point Graph)
