Amazon Filters is one of Europe’s leading manufacturers of cartridge and capsule filters. We offer a wide range of products to ensure we can supply the optimum system for each application.
Amazon Filters offers a wide range of absolute and nominal rated depth filters using polypropylene or nylon 6. Filters can be supplied in standard format or as large diameter, high flow versions, with removal ratings ranging from 0.3 – 350 µm.

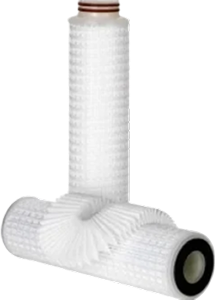

Amazon Filters provides pleated cartridges using a range of different media types including polypropylene, glass fibre, Halar and nylon mesh with absolute removal ratings ranging from 0.3 – 400 µm. Filters can be supplied in standard format or as large diameter, high flow versions.

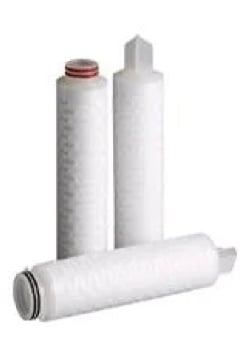

We are able to offer absolute rated pleated membrane filters with either hydrophilic polyethersulphone (PES), hydrophilic nylon 66 or hydrophobic PTFE media. Typically SupaPore VP
PES filters (rated 0.03 – 1 µm) and SupaPore NP
Nylon 66 (rated 0.1 – 0.65 µm) are used for aqueous solutions, SupaPore TP
PTFE filters (rated 0.1 – 3 µm) are used for air, gas and solvents and SupaPore TL
for more aggressive solvents and chemicals. These are supported with comprehensive technical documentation.

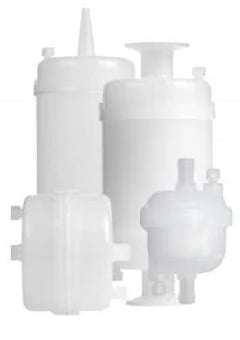

Capsules are fully disposable filter units for small and medium scale liquid and gas processing applications. They are ready-to-use, avoiding the need to purchase or maintain filter housings and are easy to change-out with minimum downtime. The SupaPore
range is available with hydrophilic PES or hydrophobic PTFE membranes and with polypropylene or Borosilicate Glass pleated media. The SupaSpun
range features all polypropylene spun bonded depth media.
Activated Carbon Filters
Amazon Filters supplies SupaCarb
cartridges containing activated carbon that provide effective removal of contaminants in a clean and easy to use format. We offer products with sintered block or rolled felt activated carbon, either in standard cartridge format or as large diameter, high capacity versions. Typical applications include chlorine removal and decolourisation.

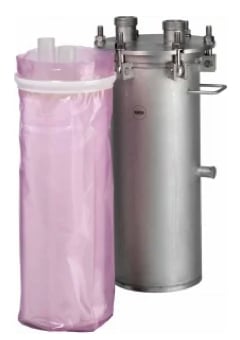

filter system consists of our standard filter cartridges enclosed inside two sealed plastic bags. This results in the filters and any process fluids being contained inside a secure assembly, providing isolation of the product and filters. The whole system is used inside a stainless steel housing.
Stainless Steel Filters
Where processes are most aggressive we offer both pleated and cylindrical SupaMesh
filters that can be used in temperatures ranging from –150ºC to +300ºC and for differential pressures up to 25 bar in the normal flow direction. They are also available with optional outer guards where reverse flow or backwashing is required.

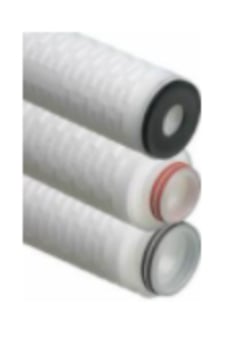

Filter Cartridge End Fittings
Double Open End (DOE) cartridges are designed to be open at both ends and rely on the sealing arrangement within the housing to close one end of the filter and so direct flow through the filter and out through the other end.
Single Open End (SOE) cartridges are manufactured with one end of the cartridge sealed with a blanking end cap, and the other end has an open end cap/adaptor with built in 'O' rings. This provides a much more efficient and reliable seal.
SupaPleat FFCSupaPleat FFC
filters are high surface area cartridges offering maximum efficiency and exceptionally high flow capabilities. Developed to suit large scale processes where high performance is required, the filters incorporate advanced pleated depth media providing low pressure loss and high dirt capacity.
