52 Series

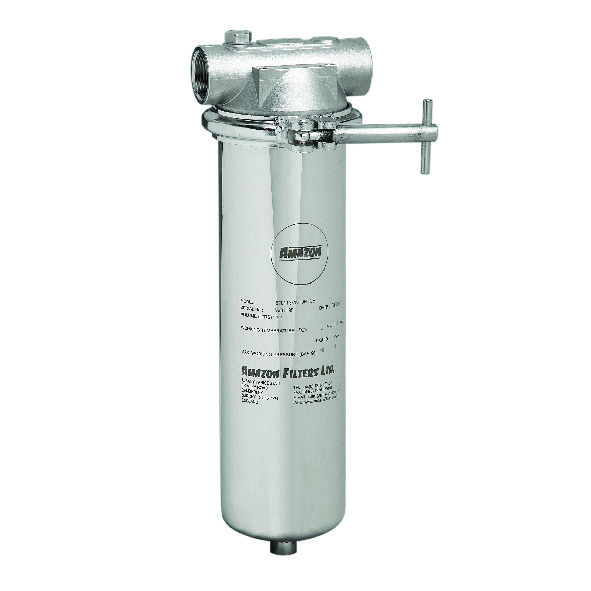

The 52 Series single cartridge housing is a further development of the successful 51 Series housing. Still with the ability to accept both standard Double Open End and Single Open End cartridges, this single stack housing has an enhanced Cast clamp and solid ring closure, that has proved very successful in a wide variety of applications within both the liquids and low pressure gas processing industries.

The 52 Series will accept the full range of Amazon and industry standard cartridges

ranging from 0.1 to 500µm with nominal lengths of 5, 10, 20 and 30”.

Product Features

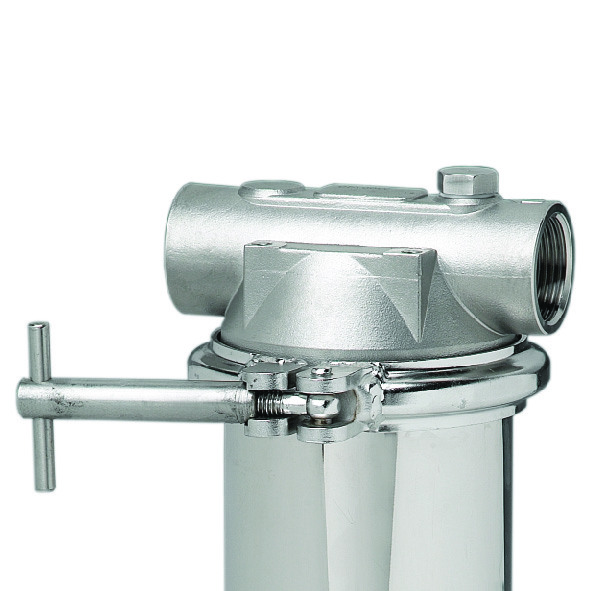

Quick release cast Vee Clamp Closure for easy opening
Lightweight, high specification investment cast head
Easy to use tie rod assembly design ensures cartridge centralisation (for a reliable knife edge seal) that enables the use of either 9.75” or 10” cartridge length configurations (or multiples) in the same housing
Dual purpose head accepts SOE code 3 and DOE cartridges
SOE code 7 and code B adaptors available
Available in 316L stainless steel or Hastelloy C22 for maximum compatibility
Wide range of connection size and types, cartridge lengths and materials of construction
PED Compliant to Cat I
Full traceability on all parts, material certification packs available
Rated at full vacuum and up to 20 bar g in liquids and gases

Features and Benefits

Investment Cast head (avoids the porosity & inclusion problems associated with lower quality sand castings)
Integral vent and drain sockets to aid efficient filter changeout complete with PTFE washer
Unique interchangeable configuration enables choice of plug in or DOE cartridge styles in the same housing
Every housing is etched with a serial number for full traceability
Full housing customisation service available
Available in both 316L Stainless Steel and C22 Hastelloy

To download a copy of the 52 Series datasheet click here.

Please consult our Sales office for further details on this product.
